BM10, 2004

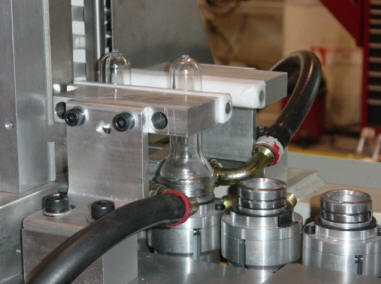

Alkam BM10, 12'000 pz/h
Vantaggi
-
Anno: 1999
-
Neck: novembal
-
Libera da subito
| Technical specifications | |
| Number of cavities | 10 |
| Ouput, up to | 12'000 bph |
| Product dimension | |
| Preform length | 165 mm |
| Preform diameter | 18 - 35 mm |
| Neck ring diameter | 18 - 38 mm |
| Maximum neck finish diameter | 38 mm |
| Neck height | 9 - 27 mm |
| Bottle heigh | 350 mm |
| Bottle diameter | 100 mm |
| Bottle volume | 2 liter |
| Equipment dimensions, LxWxH | |
| Blowing module | 6,8 x 2,7 x 2,5 m |
| Control Cabinet | m |
| Preforms infeed | m |
| Weight | |
| Blowing module | 10'000 kg |
| Control Cabinet | kg |
| Preforms infeed | 1'100 kg |
| Total | kg |
| Installed power | |
| Installed power, maximum | 128 kW |
| Power supply | 230/400 V ±10% |
| Frequency | 50 / 60 Hz ±1% |
| Cooling water | |
| Cooling capacity | 20'000 kcal/h |
| Water temperature | 8 - 12° C |
| Compressed air | |
| Validity of these consumptions: at a temperature of °C and at sea-level. | |
| 40 bar dry compressed air | |
| Total consumption for 2 liters bottle | 815 Nm³/h |
| 8 bar compressed air (service air) | |
| consumption | 200 Nm³/hS |
